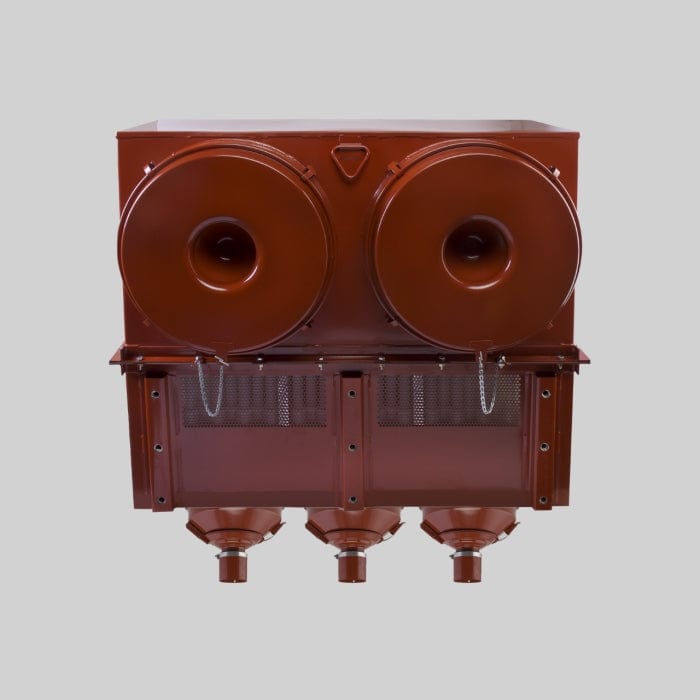

Air Cleaner, Ssg Donaclone Vertical - Donaldson G290055

Air Cleaner, Ssg Donaclone Vertical - Donaldson G290055

£8,653.31
£8,653.31
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson G290055

Air Cleaner, Ssg Donaclone Vertical
View full details

Specifications

Attributes

  • Width: 1092 mm (42.99 inch)
  • Depth: 597 mm (23.50 inch)
  • Outlet Diameter: 254 mm (10.00 inch)
  • Body Diameter Maximum: 500 mm (19.68 inch)
  • Body Length: 798 mm (31.42 inch)
  • Rated Flow LR: 118.9 m³/min (4199 cfm)
  • Rated Flow HR: 135.8 m³/min (4796 cfm)
  • Restriction LR: 152 mm H2O (5.98 inch H2O)
  • Restriction HR: 203 mm H2O (7.99 inch H2O)
  • Style: Vertical
  • Family: SSG
  • Brand: Donaclone™

Packaged Dimensions

  • Packaged Length: 1.400 m (56.00 inch)
  • Packaged Width: 1.138 m (45.50 inch)
  • Packaged Height: 1.500 m (60.00 inch)
  • Packaged Weight: 215.196 kg (474.00 lb)
  • Packaged Volume: 2.477 m3 (88.47 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-04
  • HTS Code: 8421310090
  • UPC Code: 742330167663

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
LIEBHERR 13011L
UNIT RIG EQUIPMENT 57205
