• Donaldson Air Cleaner, Psd Powercore - Donaldson D100398
1 1

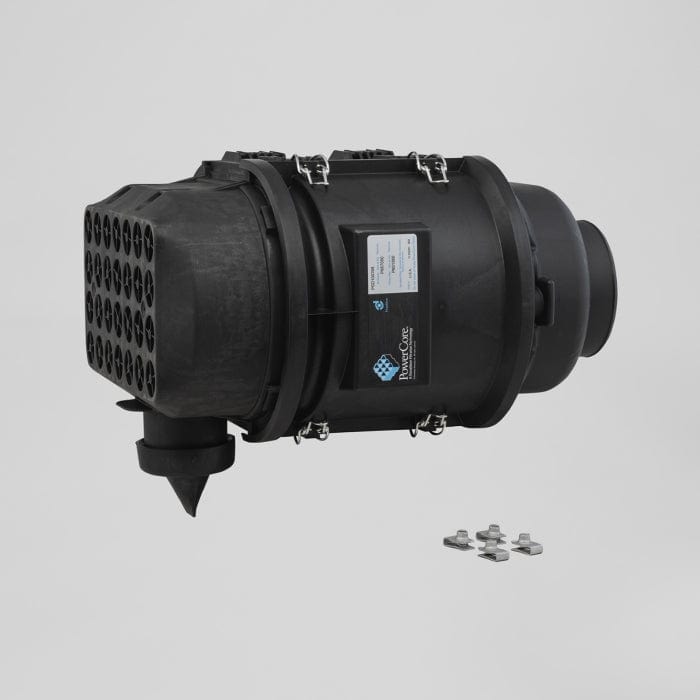

Air Cleaner, Psd Powercore - Donaldson D100398

Air Cleaner, Psd Powercore - Donaldson D100398

£265.22
£265.22
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson D100398

Air Cleaner, Psd Powercore
Notes Access Cover and outlet tube are positioned 180DEG compared to the Access cover and outlet tube locations on the D100384
Outlet Diameter 5.00 inch (127 mm)
Body Length 7.83 inch (198.9 mm)
Overall Length 16.89 inch (429 mm)
Rated Flow LR 512 cfm (14.5 m³/min)
Rated Flow MR 597 cfm (16.9 m³/min)
Rated Flow HR 671 cfm (19 m³/min)
Restriction LR 6.00 inch H2O (152.4 mm H2O)
Restriction MR 8.00 inch H2O (203.2 mm H2O)
Restriction HR 10.00 inch H2O (254 mm H2O)
Family PSD
Media Brand PowerCore®
View full details

Specifications

Attributes

  • Notes: Access Cover and outlet tube are positioned 180DEG compared to the Access cover and outlet tube locations on the D100384
  • Outlet Diameter: 127 mm (5.00 inch)
  • Body Length: 198.9 mm (7.83 inch)
  • Overall Length: 429 mm (16.89 inch)
  • Rated Flow LR: 14.5 m³/min (512 cfm)
  • Rated Flow MR: 16.9 m³/min (597 cfm)
  • Rated Flow HR: 19 m³/min (671 cfm)
  • Restriction LR: 152.4 mm H2O (6.00 inch H2O)
  • Restriction MR: 203.2 mm H2O (8.00 inch H2O)
  • Restriction HR: 254 mm H2O (10.00 inch H2O)
  • Family: PSD
  • Media Brand: PowerCore®

Packaged Dimensions

  • Packaged Length: 0.495 m (19.80 inch)
  • Packaged Width: 0.363 m (14.52 inch)
  • Packaged Height: 0.399 m (15.96 inch)
  • Packaged Weight: 6.338 kg (13.96 lb)
  • Packaged Volume: 0.074 m3 (2.66 ft3)

Other Information

  • Country of Origin: Germany
  • NMFC Code: 069100-05
  • HTS Code: 8421310090
  • UPC Code: 742330235126
