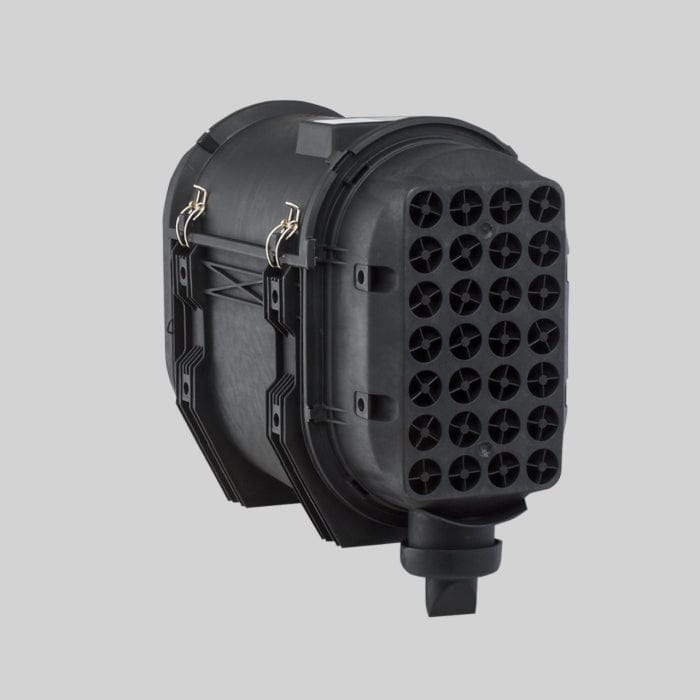

Air Cleaner, Psd Powercore - Donaldson D100390

Air Cleaner, Psd Powercore - Donaldson D100390

£289.13
£289.13
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson D100390

Air Cleaner, Psd Powercore
Outlet Diameter 5.98 inch (152 mm)
Body Length 11.77 inch (298.9 mm)
Overall Length 20.83 inch (529 mm)
Rated Flow LR 533 cfm (15.1 m³/min)
Rated Flow MR 622 cfm (17.6 m³/min)
Rated Flow HR 699 cfm (19.8 m³/min)
Restriction LR 6 inch H2O (152.4 mm H2O)
Restriction MR 8 inch H2O (203.2 mm H2O)
Restriction HR 10 inch H2O (254 mm H2O)
Family PSD
Media Brand PowerCore®
View full details

Specifications

Attributes

  • Outlet Diameter: 152 mm (5.98 inch)
  • Body Length: 298.9 mm (11.77 inch)
  • Overall Length: 529 mm (20.83 inch)
  • Rated Flow LR: 15.1 m³/min (533 cfm)
  • Rated Flow MR: 17.6 m³/min (622 cfm)
  • Rated Flow HR: 19.8 m³/min (699 cfm)
  • Restriction LR: 152.4 mm H2O (6 inch H2O)
  • Restriction MR: 203.2 mm H2O (8 inch H2O)
  • Restriction HR: 254 mm H2O (10 inch H2O)
  • Family: PSD
  • Media Brand: PowerCore®

Packaged Dimensions

  • Packaged Length: 0.453 m (18.11 inch)
  • Packaged Width: 0.295 m (11.81 inch)
  • Packaged Height: 0.610 m (24.41 inch)
  • Packaged Weight: 6.250 kg (13.78 lb)
  • Packaged Volume: 0.085 m3 (3.02 ft3)

Other Information

  • Country of Origin: Germany
  • NMFC Code: 069100-05
  • HTS Code: 8421310090
  • UPC Code: 742330235072
