• Donaldson Air Cleaner, Powerpleat - Donaldson G110474
1 1

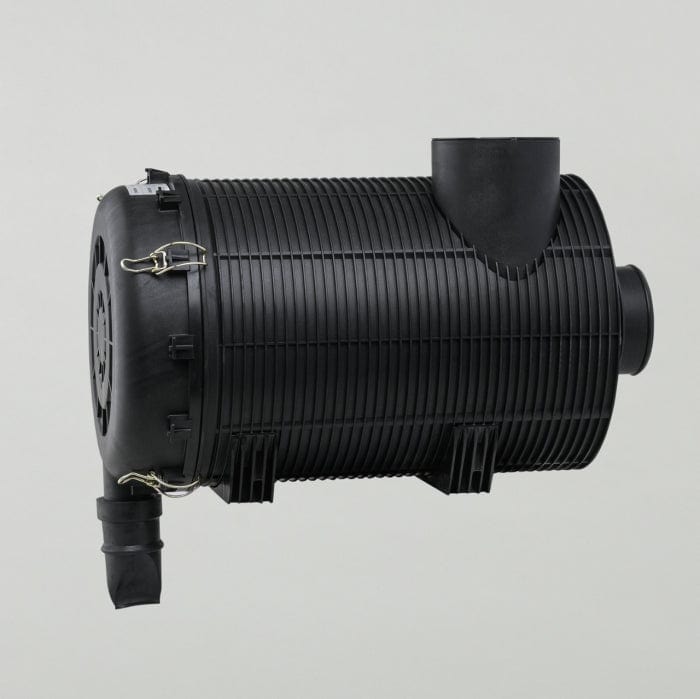

Air Cleaner, Powerpleat - Donaldson G110474

Air Cleaner, Powerpleat - Donaldson G110474

£312.53
£312.53
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson G110474

Air Cleaner, Powerpleat
Inlet Diameter 5.00 inch (127 mm)
Outlet Diameter 4.50 inch (114.3 mm)
Body Diameter Maximum 12.20 inch (309.8 mm)
Body Length 19.29 inch (490 mm)
Overall Length 22.07 inch (560.5 mm)
Service Clearance 19.29 inch (490 mm)
Rated Flow LR 337 cfm (9.54 m³/min)
Rated Flow MR 390 cfm (11.04 m³/min)
Rated Flow HR 437 cfm (12.37 m³/min)
Restriction LR 6.00 inch H2O (152.4 mm H2O)
Restriction MR 8.00 inch H2O (203.2 mm H2O)
Restriction HR 10.00 inch H2O (254 mm H2O)
Style Radialseal
Family PowerPleat
Brand PowerPleat™
Primary Application DONALDSON POWERPLEAT 11
View full details

Specifications

Attributes

  • Inlet Diameter: 127 mm (5.00 inch)
  • Outlet Diameter: 114.3 mm (4.50 inch)
  • Body Diameter Maximum: 309.8 mm (12.20 inch)
  • Body Length: 490 mm (19.29 inch)
  • Overall Length: 560.5 mm (22.07 inch)
  • Service Clearance: 490 mm (19.29 inch)
  • Rated Flow LR: 9.54 m³/min (337 cfm)
  • Rated Flow MR: 11.04 m³/min (390 cfm)
  • Rated Flow HR: 12.37 m³/min (437 cfm)
  • Restriction LR: 152.4 mm H2O (6.00 inch H2O)
  • Restriction MR: 203.2 mm H2O (8.00 inch H2O)
  • Restriction HR: 254 mm H2O (10.00 inch H2O)
  • Style: Radialseal
  • Family: PowerPleat
  • Brand: PowerPleat™
  • Primary Application: DONALDSON POWERPLEAT 11

Packaged Dimensions

  • Packaged Length: 0.478 m (19.12 inch)
  • Packaged Width: 0.341 m (13.62 inch)
  • Packaged Height: 0.585 m (23.38 inch)
  • Packaged Weight: 7.167 kg (15.80 lb)
  • Packaged Volume: 0.101 m3 (3.62 ft3)

Other Information

  • Country of Origin: China
  • NMFC Code: 069100-05
  • HTS Code: 8421310090
  • UPC Code: 742330984857
