• Donaldson Air Cleaner, Pcd Powercore - Donaldson D140132
1 1

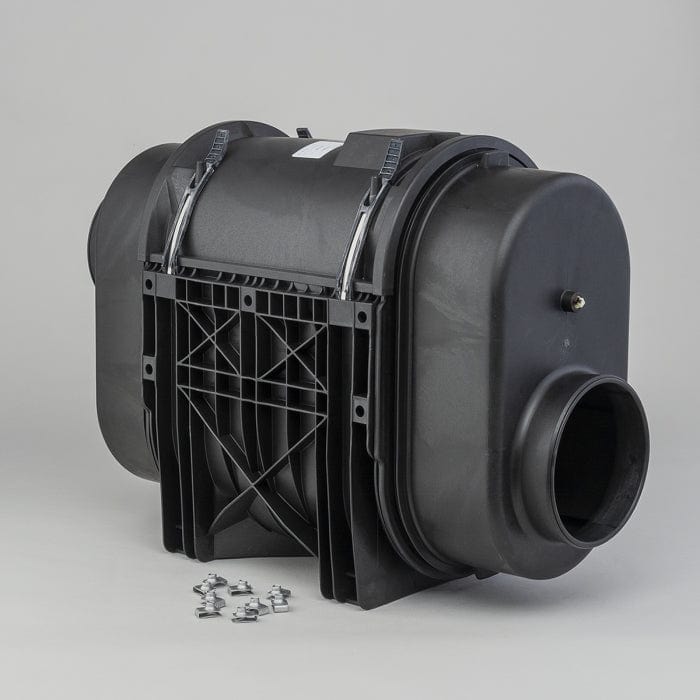

Air Cleaner, Pcd Powercore - Donaldson D140132

Air Cleaner, Pcd Powercore - Donaldson D140132

£607.73
£607.73
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson D140132

Air Cleaner, Pcd Powercore
Width 12.52 inch (318 mm)
Depth 19.72 inch (501 mm)
Inlet Diameter 7.00 inch (177.8 mm)
Outlet Diameter 7.00 inch (177.8 mm)
Overall Length 28.46 inch (723 mm)
Rated Flow LR 1140 cfm (32.28 m³/min)
Rated Flow MR 1320 cfm (37.38 m³/min)
Rated Flow HR 1500 cfm (42.48 m³/min)
Restriction LR 6.00 inch H2O (152.4 mm H2O)
Restriction MR 8.00 inch H2O (203.2 mm H2O)
Restriction HR 10.00 inch H2O (254 mm H2O)
Type Engine
Style Obround
Family PCD
View full details

Specifications

Attributes

  • Width: 318 mm (12.52 inch)
  • Depth: 501 mm (19.72 inch)
  • Inlet Diameter: 177.8 mm (7.00 inch)
  • Outlet Diameter: 177.8 mm (7.00 inch)
  • Overall Length: 723 mm (28.46 inch)
  • Rated Flow LR: 32.28 m³/min (1140 cfm)
  • Rated Flow MR: 37.38 m³/min (1320 cfm)
  • Rated Flow HR: 42.48 m³/min (1500 cfm)
  • Restriction LR: 152.4 mm H2O (6.00 inch H2O)
  • Restriction MR: 203.2 mm H2O (8.00 inch H2O)
  • Restriction HR: 254 mm H2O (10.00 inch H2O)
  • Type: Engine
  • Style: Obround
  • Family: PCD

Packaged Dimensions

  • Packaged Length: 0.747 m (29.88 inch)
  • Packaged Width: 0.588 m (23.52 inch)
  • Packaged Height: 0.399 m (15.96 inch)
  • Packaged Weight: 11.999 kg (26.43 lb)
  • Packaged Volume: 0.182 m3 (6.51 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-05
  • HTS Code: 8421310090
  • UPC Code: 742330233849
