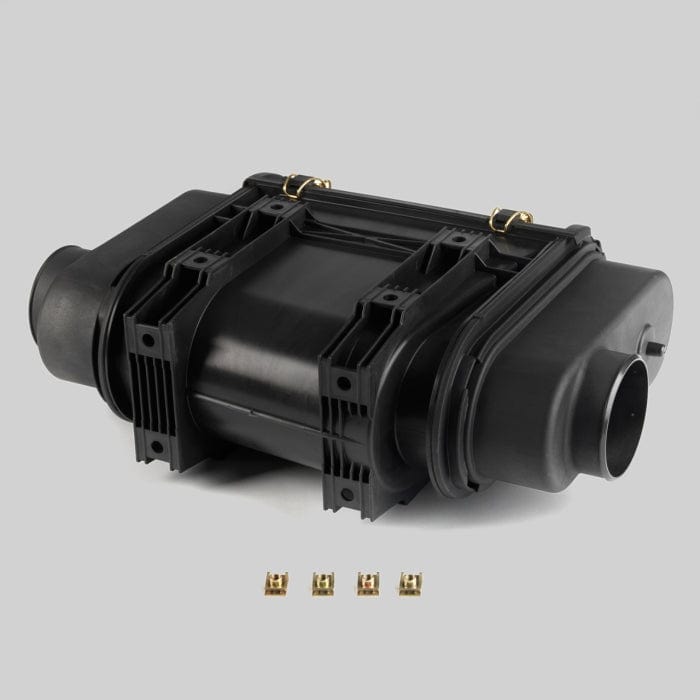

Air Cleaner, Pcd Powercore - Donaldson D090109

Air Cleaner, Pcd Powercore - Donaldson D090109

£226.53
£226.53
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson D090109

Air Cleaner, Pcd Powercore
Inlet Diameter 4 inch (101.6 mm)
Outlet Diameter 4 inch (101.6 mm)
Body Length 21.77 inch (553 mm)
Overall Length 21.77 inch (553 mm)
Rated Flow LR 417 cfm (11.8 m³/min)
Rated Flow MR 487 cfm (13.8 m³/min)
Rated Flow HR 551 cfm (15.6 m³/min)
Restriction LR 6 inch H2O (152.4 mm H2O)
Restriction MR 8 inch H2O (203.2 mm H2O)
Restriction HR 10 inch H2O (254 mm H2O)
Family PCD
Media Brand PowerCore®
View full details

Specifications

Attributes

  • Inlet Diameter: 101.6 mm (4 inch)
  • Outlet Diameter: 101.6 mm (4 inch)
  • Body Length: 553 mm (21.77 inch)
  • Overall Length: 553 mm (21.77 inch)
  • Rated Flow LR: 11.8 m³/min (417 cfm)
  • Rated Flow MR: 13.8 m³/min (487 cfm)
  • Rated Flow HR: 15.6 m³/min (551 cfm)
  • Restriction LR: 152.4 mm H2O (6 inch H2O)
  • Restriction MR: 203.2 mm H2O (8 inch H2O)
  • Restriction HR: 254 mm H2O (10 inch H2O)
  • Family: PCD
  • Media Brand: PowerCore®

Packaged Dimensions

  • Packaged Length: 0.390 m (15.60 inch)
  • Packaged Width: 0.200 m (8.00 inch)
  • Packaged Height: 0.603 m (24.10 inch)
  • Packaged Weight: 4.218 kg (9.30 lb)
  • Packaged Volume: 0.049 m3 (1.74 ft3)

Other Information

  • Country of Origin: Germany
  • NMFC Code: 069100-05
  • HTS Code: 8421310090
  • UPC Code: 742330197240
