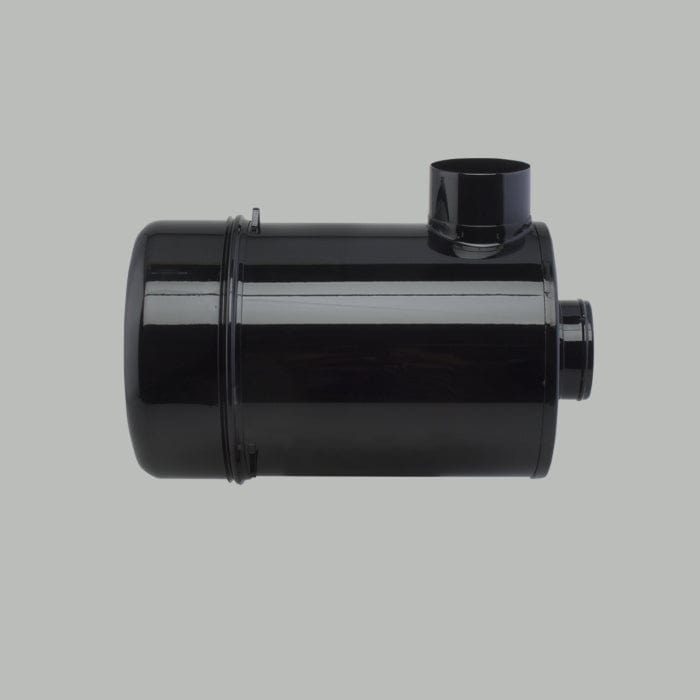

Air Cleaner, Fwg Cyclopac - Donaldson G100003
Air Cleaner, Fwg Cyclopac - Donaldson G100003
Regular price
£474.63
Regular price
Sale price
£474.63
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson G100003
Air Cleaner, Fwg Cyclopac| Inlet Diameter | 4.00 inch (101.6 mm) |
| Outlet Diameter | 4.00 inch (101.6 mm) |
| Body Diameter Maximum | 10.19 inch (258.83 mm) |
| Body Length | 12.18 inch (309.37 mm) |
| Overall Length | 17.98 inch (456.69 mm) |
| Rated Flow LR | 297 cfm (8.4 m³/min) |
| Rated Flow MR | 343 cfm (9.7 m³/min) |
| Rated Flow HR | 385 cfm (10.9 m³/min) |
| Restriction LR | 5.98 inch H2O (152 mm H2O) |
| Restriction MR | 7.99 inch H2O (203 mm H2O) |
| Restriction HR | 10.00 inch H2O (254 mm H2O) |
| Family | FWG |
| Brand | Cyclopac™ |
Share
Collapsible content
Specifications
Attributes
- Inlet Diameter: 101.6 mm (4.00 inch)
- Outlet Diameter: 101.6 mm (4.00 inch)
- Body Diameter Maximum: 258.83 mm (10.19 inch)
- Body Length: 309.37 mm (12.18 inch)
- Overall Length: 456.69 mm (17.98 inch)
- Rated Flow LR: 8.4 m³/min (297 cfm)
- Rated Flow MR: 9.7 m³/min (343 cfm)
- Rated Flow HR: 10.9 m³/min (385 cfm)
- Restriction LR: 152 mm H2O (5.98 inch H2O)
- Restriction MR: 203 mm H2O (7.99 inch H2O)
- Restriction HR: 254 mm H2O (10.00 inch H2O)
- Family: FWG
- Brand: Cyclopac™
Packaged Dimensions
- Packaged Length: 0.590 m (23.60 inch)
- Packaged Width: 0.350 m (14.00 inch)
- Packaged Height: 0.493 m (19.70 inch)
- Packaged Weight: 8.771 kg (19.32 lb)
- Packaged Volume: 0.105 m3 (3.77 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-04
- HTS Code: 8421310090
- UPC Code: 742330001745
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AEC WHITLOCK | A0546020 | |
| AG CHEM EQUIPMENT | 74745053 | |
| AGCO | 74008797 | |
| BARKO HYDRAULICS | 53500422 | |
| BLOUNT | 8612979 | |
| BOMBARDIER | 141700050 | |
| BRODERSON | 60012117 | |
| BRODERSON | 060012117 | |
| CADILLAC & LAKE CITY ROADWAY | 113692 | |
| CADILLAC GAGE COMPANY | 113692 | |
| CASE/CASE IH | C0150560 | |
| CATERPILLAR | 5E2181 | |
| CEDARAPIDS | 4569000121 | |
| CLARK | 062345353 | |
| CLARK | 62345353 | |
| COMPAIR | 43437 | |
| CUB CADET | 884652C91 | |
| CUB CADET | 884658C1 | |
| CUMMINS | 3905241 | |
| DEMAG | 081084 | |
| DEUTZ | 605414090027 | |
| DEUTZ | 74008797 | |
| DRESSER | 71450 | |
| DYNAPAC | 499225 | |
| ENGINES INC | 6059T6068T | |
| EUCLID | 1632441 | |
| EUCLID | M1632441 | |
| FMC | 2261014 | |
| GENERAC | 94193 | |
| GRADALL | 01028604 | |
| GRIMMER SCHMIDT | 12460806 | |
| GROVE | 7304000026 | |
| HAWKER SIDDELEY | 38206424 | |
| HURRICANE COMPRESSOR | 12460806 | |
| HYSTER | 182645 | |
| INGERSOLL RAND | 51608388 | |
| ISUZU | X14210034 | |
| KAELBLE | 8474080690 | |
| KOHLER | A253477 | |
| KOMATSU | 081084 | |
| KOMATSU | 81084 | |
| KOMATSU | 71450 | |
| LEROI | GD1754814 | |
| LISTER PETTER | 38204391 | |
| LISTER PETTER | 38206424 | |
| LOESING | 020023 | |
| MARINE TRAVELIFT, INC. | 605661 | |
| MINNPAR | 1020920901 | |
| MORBARK | 29320653 | |
| NORCA | 113692 | |
| NORCATEC LLC | 113692 | |
| NOVATEC | 00215 | |
| OMARK MATERIAL HANDLING | 8612979 | |
| PETTIBONE | LL847186 | |
| RAYGO | 5E2181 | |
| STENSELE | 79060802 | |
| SULLAIR | 68030441 | |
| SULLAIR | 042224 | |
| SULLAIR | 030441 | |
| TAMPO | 125302 | |
| TAYLOR | 2403060 | |
| TEREX | C0150560 | |
| TYMCO | 12849 | |
| VOLVO | M1632441 | |
| VOLVO | 1632441 | |
| WHITE | 1632441 | |
| WHITE | 311558043 | |
| WHITE | 10A27893 | |
| WHITLOCK | A0534468 | |
| WHITLOCK | A0533680 |
