• Donaldson Air Cleaner, Fwg Cyclopac - Donaldson G080023
1 1

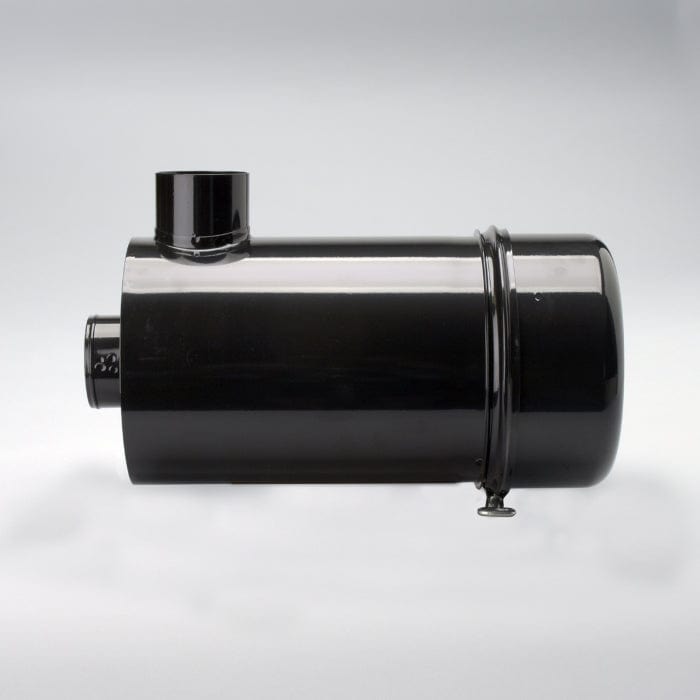

Air Cleaner, Fwg Cyclopac - Donaldson G080023

Air Cleaner, Fwg Cyclopac - Donaldson G080023

£198.71
£198.71
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson G080023

Air Cleaner, Fwg Cyclopac
Inlet Diameter 3.00 inch (76.2 mm)
Outlet Diameter 3.00 inch (76.2 mm)
Body Diameter Maximum 8.00 inch (203.2 mm)
Body Length 11.65 inch (295.91 mm)
Overall Length 16.59 inch (421.39 mm)
Rated Flow LR 205 cfm (5.8 m³/min)
Rated Flow MR 237 cfm (6.7 m³/min)
Rated Flow HR 265 cfm (7.5 m³/min)
Restriction LR 5.98 inch H2O (152 mm H2O)
Restriction MR 7.99 inch H2O (203 mm H2O)
Restriction HR 10.00 inch H2O (254 mm H2O)
Family FWG
Brand Cyclopac™
View full details

Specifications

Attributes

  • Inlet Diameter: 76.2 mm (3.00 inch)
  • Outlet Diameter: 76.2 mm (3.00 inch)
  • Body Diameter Maximum: 203.2 mm (8.00 inch)
  • Body Length: 295.91 mm (11.65 inch)
  • Overall Length: 421.39 mm (16.59 inch)
  • Rated Flow LR: 5.8 m³/min (205 cfm)
  • Rated Flow MR: 6.7 m³/min (237 cfm)
  • Rated Flow HR: 7.5 m³/min (265 cfm)
  • Restriction LR: 152 mm H2O (5.98 inch H2O)
  • Restriction MR: 203 mm H2O (7.99 inch H2O)
  • Restriction HR: 254 mm H2O (10.00 inch H2O)
  • Family: FWG
  • Brand: Cyclopac™

Packaged Dimensions

  • Packaged Length: 0.293 m (11.70 inch)
  • Packaged Width: 0.253 m (10.10 inch)
  • Packaged Height: 0.430 m (17.20 inch)
  • Packaged Weight: 4.837 kg (10.66 lb)
  • Packaged Volume: 0.033 m3 (1.18 ft3)

Other Information

  • Country of Origin: South Africa
  • NMFC Code: 069100-06
  • HTS Code: 8421310090
  • UPC Code: 742330001547

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AG CHEM EQUIPMENT 515272
AGCO 74021443
ATLAS COPCO 328185
BLOUNT 565471
BOMBARDIER 114067500
BRODERSON 060012042
CASE/CASE IH 36261
CASE/CASE IH 407280
CATERPILLAR 312138
CATERPILLAR 776598
CATERPILLAR 565471
CATERPILLAR 0776598
CEDARAPIDS 4569000115
COMPAIR 43422
CUB CADET 222260H1
CUB CADET 3032804R91
CUMMINS 3904916
CUMMINS 3911723
CYCLONE 60110
DEUTZ E0303859
DEUTZ 74021443
DEUTZ 303859
DRESSER 114359
DYNAPAC 499134
EIMCO 9112906064
EIMCO 64801826
ENTWISTLE COMPANY 9310C3045001
EUCLID 0966722
FMC 5190135001
FORD XU1L9600CA
FORD C6JZ9600B
FORD C6JZ9600C
FORD 9576G080023
FRANKLIN 1509536
FULLER 12330461550
GEHL 120038
GEHL L120038A
GENERAC 65232
GRADALL 650156
GRIMMER SCHMIDT 12429373
GRIMMER SCHMIDT 929373
HOIST LIFTTRUCK MANUFACTURING M00215
HURRICANE COMPRESSOR 12429373
HURRICANE COMPRESSOR 60110
HYSTER 134887
INGERSOLL RAND 57431884
INGERSOLL RAND 60110
ISUZU X14210009
ISUZU X142100090
JLG 1340065
JOHN CLARK INC. 39108156
JOHN DEERE F300100
JOHN DEERE F300100J
KOEHRING MK65324
KOHLER A279379
KOMATSU 114359
KUT KWIK 21147
KYSOR 407280
KYSOR 460C013
LIEBHERR 7211199
LINCOLN ELECTRIC S15426
LISTER PETTER 38204385
MORBARK 29321206
ONAN 01401454
ONAN N422929003
P & H 46Q95D4
PETTIBONE 0RO23180023
PETTIBONE LL84765
PRINOTH 114067500
RAYGO 0776598
RED DOT RD542900
SANDVIK 64801826
SIGMA AIR CONDITIONING 460C097
SIGMA AIR CONDITIONING 460C013
TAYLOR 2403700
TELEDYNE 10220014
TENNANT 75609
THOMAS 21031
TIMBERJACK F300100
TIMBERJACK 204787400
TYLER POWER PRODUCTS 120038A
TYMCO 500596
UNITED CENTRAL INDUSTRIAL SUPP 686356
VACTOR MANUFACTURING 70134
WAGNER MINING EQUIPMENT 328185
WAUKESHA 305346
WHITE 1196733
WILMAR 24905
