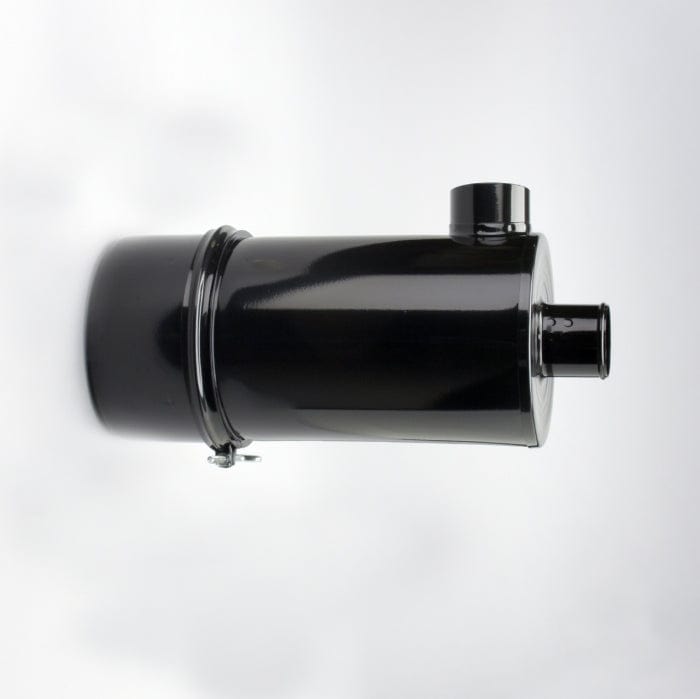

Air Cleaner, Fwg Cyclopac - Donaldson G065008

Attributes

• Inlet Diameter: 63.5 mm (2.50 inch)
• Outlet Diameter: 57.2 mm (2.25 inch)
• Body Diameter Maximum: 166.4 mm (6.55 inch)
• Body Length: 251.21 mm (9.89 inch)
• Overall Length: 401.3 mm (15.80 inch)
• Rated Flow LR: 3.2 m³/min (113 cfm)
• Rated Flow MR: 3.7 m³/min (131 cfm)
• Rated Flow HR: 4.1 m³/min (145 cfm)
• Restriction LR: 152 mm H2O (5.98 inch H2O)
• Restriction MR: 203 mm H2O (7.99 inch H2O)
• Restriction HR: 254 mm H2O (10.00 inch H2O)
• Family: FWG
• Brand: Cyclopac™

Packaged Dimensions

• Packaged Length: 0.250 m (10.00 inch)
• Packaged Width: 0.198 m (7.90 inch)
• Packaged Height: 0.425 m (17.00 inch)
• Packaged Weight: 3.323 kg (7.32 lb)
• Packaged Volume: 0.022 m3 (0.78 ft3)

Other Information

• Country of Origin: South Africa
• NMFC Code: 069100-06
• HTS Code: 8421310090
• UPC Code: 742330001301
