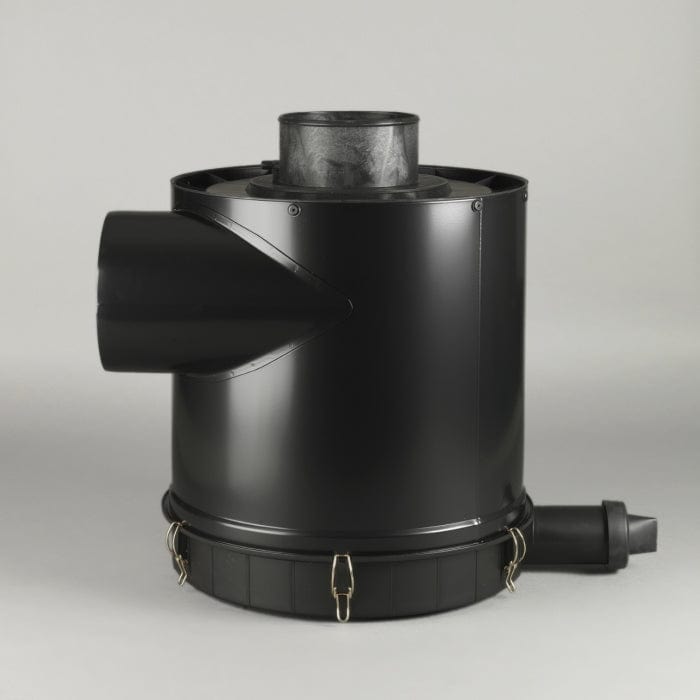

Air Cleaner, Frg Radialseal - Donaldson G180087

Air Cleaner, Frg Radialseal - Donaldson G180087

£485.65
£485.65
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson G180087

Air Cleaner, Frg Radialseal
View full details

Specifications

Attributes

  • Inlet Diameter: 203 mm (7.99 inch)
  • Outlet Diameter: 178 mm (7.01 inch)
  • Body Diameter Maximum: 457 mm (17.99 inch)
  • Body Length: 423 mm (16.65 inch)
  • Overall Length: 595 mm (23.43 inch)
  • Rated Flow LR: 23 m³/min (812 cfm)
  • Rated Flow MR: 30.2 m³/min (1067 cfm)
  • Rated Flow HR: 37 m³/min (1307 cfm)
  • Restriction LR: 100 mm H2O (3.94 inch H2O)
  • Restriction MR: 200 mm H2O (7.87 inch H2O)
  • Restriction HR: 300 mm H2O (11.81 inch H2O)
  • Style: Radialseal
  • Family: FRG
  • Brand: RadialSeal™

Packaged Dimensions

  • Packaged Length: 0.819 m (32.75 inch)
  • Packaged Width: 0.606 m (24.25 inch)
  • Packaged Height: 0.563 m (22.50 inch)
  • Packaged Weight: 22.680 kg (50.01 lb)
  • Packaged Volume: 0.290 m3 (10.34 ft3)

Other Information

  • Country of Origin: Germany
  • NMFC Code: 069100-05
  • HTS Code: 8421310090
  • UPC Code: 742330180198

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ATLAS COPCO 3222308484
CLAAS 1421650
CUMMINS CDD000970
KALMAR 920969003
KRONE 9403060
NEUSON 1000194264
UP LIFTING VERTICAL S.A. 5490091006
