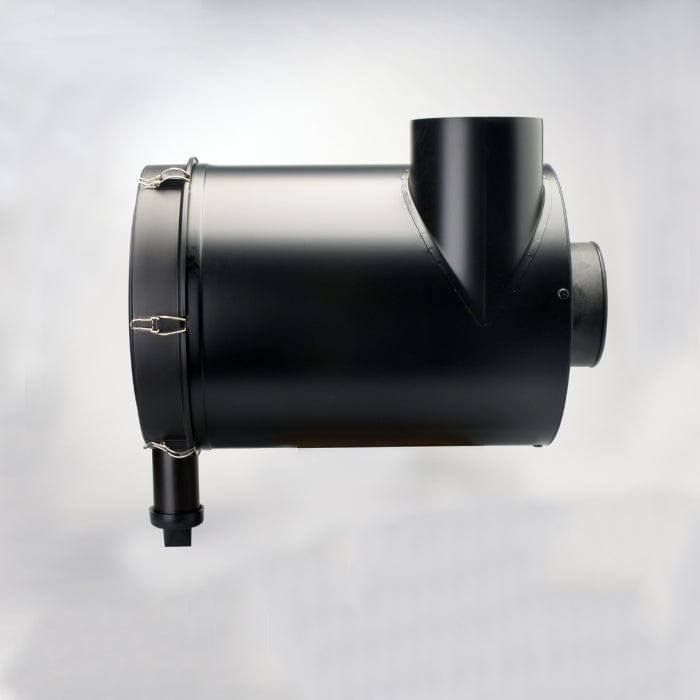

Air Cleaner, Frg Radialseal - Donaldson G180031

Air Cleaner, Frg Radialseal - Donaldson G180031

£497.99
£497.99
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson G180031

Air Cleaner, Frg Radialseal
Inlet Diameter 7.99 inch (203 mm)
Outlet Diameter 7.99 inch (203 mm)
Body Diameter Maximum 17.99 inch (457 mm)
Body Length 22.17 inch (563 mm)
Overall Length 28.94 inch (735 mm)
Rated Flow LR 1042 cfm (29.5 m³/min)
Rated Flow MR 1229 cfm (34.8 m³/min)
Rated Flow HR 1391 cfm (39.4 m³/min)
Restriction LR 5.98 inch H2O (152 mm H2O)
Restriction MR 7.99 inch H2O (203 mm H2O)
Restriction HR 10.00 inch H2O (254 mm H2O)
Style Radialseal
Family FRG
Brand RadialSeal™
View full details

Specifications

Attributes

  • Inlet Diameter: 203 mm (7.99 inch)
  • Outlet Diameter: 203 mm (7.99 inch)
  • Body Diameter Maximum: 457 mm (17.99 inch)
  • Body Length: 563 mm (22.17 inch)
  • Overall Length: 735 mm (28.94 inch)
  • Rated Flow LR: 29.5 m³/min (1042 cfm)
  • Rated Flow MR: 34.8 m³/min (1229 cfm)
  • Rated Flow HR: 39.4 m³/min (1391 cfm)
  • Restriction LR: 152 mm H2O (5.98 inch H2O)
  • Restriction MR: 203 mm H2O (7.99 inch H2O)
  • Restriction HR: 254 mm H2O (10.00 inch H2O)
  • Style: Radialseal
  • Family: FRG
  • Brand: RadialSeal™

Packaged Dimensions

  • Packaged Length: 0.818 m (32.70 inch)
  • Packaged Width: 0.595 m (23.80 inch)
  • Packaged Height: 0.535 m (21.40 inch)
  • Packaged Weight: 23.608 kg (52.00 lb)
  • Packaged Volume: 0.270 m3 (9.64 ft3)

Other Information

  • Country of Origin: Germany
  • NMFC Code: 069100-05
  • HTS Code: 8421310090
  • UPC Code: 742330115558

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CMI 554005014000
COMPAIR 431132
CRANE CARRIER 102B0075
CUMMINS 10000679
CUMMINS 5492513
CURTIS TOLEDO RN24088
CURTIS TOLEDO RN24089
DETROIT DIESEL DG180031
DRILTECH 006307003
HURRICANE COMPRESSOR 63439
JOHN DEERE AH169560
KOHLER GM69932
LIUGONG 40C0825
MANITOWOC A022580
MORBARK 29320646
PIVOT POWER INC G180031387140
RIMPULL 215048
SANDVIK 006307003
SANDVIK 6307003
SEAGRAVE P2697800
SULLAIR 02250155690
SULLIVAN PALATEK 281741100
SUNWARD 750201011175
TAMROCK 504771
VERMEER 163552517
