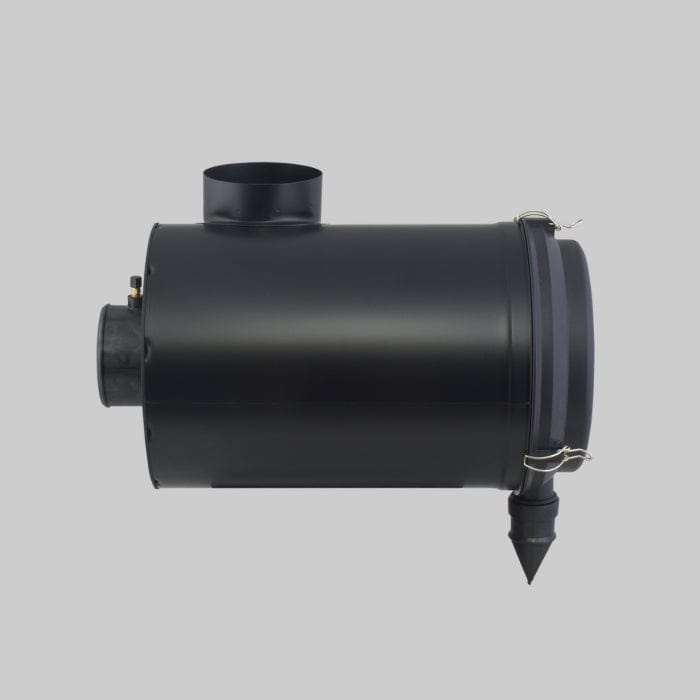

Air Cleaner, Frg Radialseal - Donaldson G130107

Air Cleaner, Frg Radialseal - Donaldson G130107

£323.50
£323.50
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson G130107

Air Cleaner, Frg Radialseal
Inlet Diameter 6.00 inch (152.4 mm)
Outlet Diameter 5.00 inch (127 mm)
Body Diameter Maximum 12.98 inch (329.7 mm)
Body Length 13.43 inch (341 mm)
Overall Length 19.36 inch (491.8 mm)
Rated Flow LR 441 cfm (12.5 m³/min)
Rated Flow MR 509 cfm (14.4 m³/min)
Rated Flow HR 569 cfm (16.1 m³/min)
Restriction LR 5.98 inch H2O (152 mm H2O)
Restriction MR 7.99 inch H2O (203 mm H2O)
Restriction HR 10.00 inch H2O (254 mm H2O)
Style Radialseal
Family FRG
Brand RadialSeal™
View full details

Specifications

Attributes

  • Inlet Diameter: 152.4 mm (6.00 inch)
  • Outlet Diameter: 127 mm (5.00 inch)
  • Body Diameter Maximum: 329.7 mm (12.98 inch)
  • Body Length: 341 mm (13.43 inch)
  • Overall Length: 491.8 mm (19.36 inch)
  • Rated Flow LR: 12.5 m³/min (441 cfm)
  • Rated Flow MR: 14.4 m³/min (509 cfm)
  • Rated Flow HR: 16.1 m³/min (569 cfm)
  • Restriction LR: 152 mm H2O (5.98 inch H2O)
  • Restriction MR: 203 mm H2O (7.99 inch H2O)
  • Restriction HR: 254 mm H2O (10.00 inch H2O)
  • Style: Radialseal
  • Family: FRG
  • Brand: RadialSeal™

Packaged Dimensions

  • Packaged Length: 0.520 m (20.80 inch)
  • Packaged Width: 0.353 m (14.10 inch)
  • Packaged Height: 0.500 m (20.00 inch)
  • Packaged Weight: 10.052 kg (22.14 lb)
  • Packaged Volume: 0.095 m3 (3.39 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-05
  • HTS Code: 8421310090
  • UPC Code: 742330086711

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AGCO 700727338
CATERPILLAR 10068511
CUMMINS 10000647
DITCH WITCH 194672
DITCH WITCH 194672A
HAY & FORAGE 700727338
LINK BELT D7A0735
PETTIBONE LL847499
REEDRILL 435288
