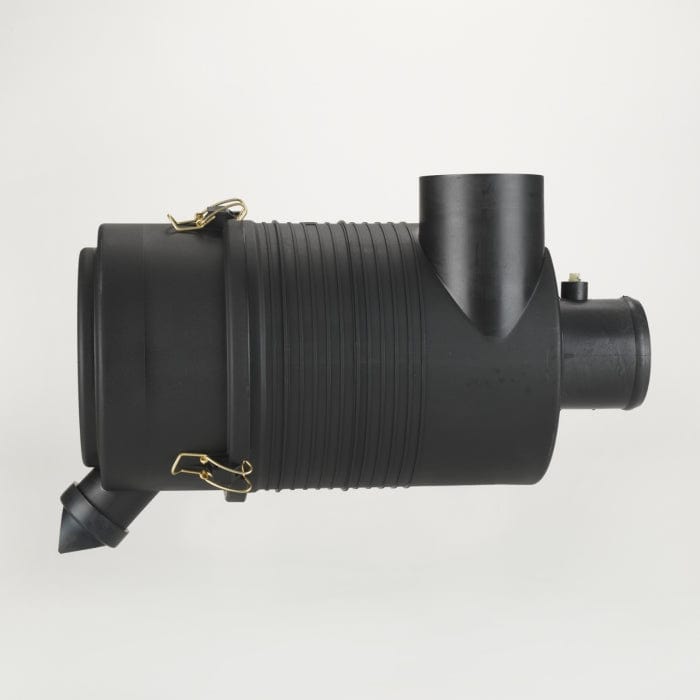

Air Cleaner, Fpg Radialseal - Donaldson G082525
Air Cleaner, Fpg Radialseal - Donaldson G082525
Regular price
£96.61
Regular price
Sale price
£96.61
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson G082525
Air Cleaner, Fpg Radialseal| Inlet Diameter | 3.74 inch (94.996 mm) |
| Outlet Diameter | 3.50 inch (88.9 mm) |
| Body Diameter Maximum | 8.35 inch (212.09 mm) |
| Body Length | 9.69 inch (246.2 mm) |
| Overall Length | 18.17 inch (461.518 mm) |
| Rated Flow LR | 166 cfm (4.7 m³/min) |
| Rated Flow MR | 191 cfm (5.4 m³/min) |
| Rated Flow HR | 215 cfm (6.1 m³/min) |
| Restriction LR | 5.98 inch H2O (152 mm H2O) |
| Restriction MR | 7.99 inch H2O (203 mm H2O) |
| Restriction HR | 10.00 inch H2O (254 mm H2O) |
| Style | Radialseal |
| Family | FPG |
| Brand | RadialSeal™ |
Share
Collapsible content
Specifications
Attributes
- Inlet Diameter: 94.996 mm (3.74 inch)
- Outlet Diameter: 88.9 mm (3.50 inch)
- Body Diameter Maximum: 212.09 mm (8.35 inch)
- Body Length: 246.2 mm (9.69 inch)
- Overall Length: 461.518 mm (18.17 inch)
- Rated Flow LR: 4.7 m³/min (166 cfm)
- Rated Flow MR: 5.4 m³/min (191 cfm)
- Rated Flow HR: 6.1 m³/min (215 cfm)
- Restriction LR: 152 mm H2O (5.98 inch H2O)
- Restriction MR: 203 mm H2O (7.99 inch H2O)
- Restriction HR: 254 mm H2O (10.00 inch H2O)
- Style: Radialseal
- Family: FPG
- Brand: RadialSeal™
Packaged Dimensions
- Packaged Length: 0.293 m (11.70 inch)
- Packaged Width: 0.250 m (10.00 inch)
- Packaged Height: 0.490 m (19.60 inch)
- Packaged Weight: 3.044 kg (6.71 lb)
- Packaged Volume: 0.037 m3 (1.33 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-04
- HTS Code: 8421310090
- UPC Code: 742330001622
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AGCO | 113060M1 | |
| ALLMAND BROS | MA381AC | |
| ALLMAND BROS | MA280AC | |
| B R LEE INDUSTRIES | 38385 | |
| CASE/CASE IH | 6190657M91 | |
| COMPACTION AMERICA | 05730018 | |
| DIAMOND | 2500355 | |
| DOOSAN | 40041400252 | |
| DYNAPAC | 4700374727 | |
| DYNAPAC | 374727 | |
| ELGIN | 1047024 | |
| GRADALL | G4090501 | |
| GRADALL | 91403101 | |
| HAY & FORAGE | 65350 | |
| JLG | 10733141 | |
| JLG | 91403101 | |
| JOHN DEERE | RE64098 | |
| LONKING | 60101100728 | |
| LULL | 10733141 | |
| LULL | P33141 | |
| MACDON | 111051 | |
| MORBARK | 29321389 | |
| NEW HOLLAND | 4169 | |
| OMNIQUIP PARTS WORLD WIDE | 10733141 | |
| PETTIBONE | LPP33141 | |
| PORTAGE MANUFACTURING | 65350 | |
| SHANZHONG | J18007A011000 | |
| SIGMA AIR CONDITIONING | 460C103 | |
| SKYJACK | 709773 | |
| SUNWARD | 750201011244 | |
| TRAK INTERNATIONAL | 10733141 | |
| VACTOR MANUFACTURING | 47791A | |
| VERMEER | 1184960011 | |
| VERMEER | 118496001 | |
| YTO | 240100097310 |
