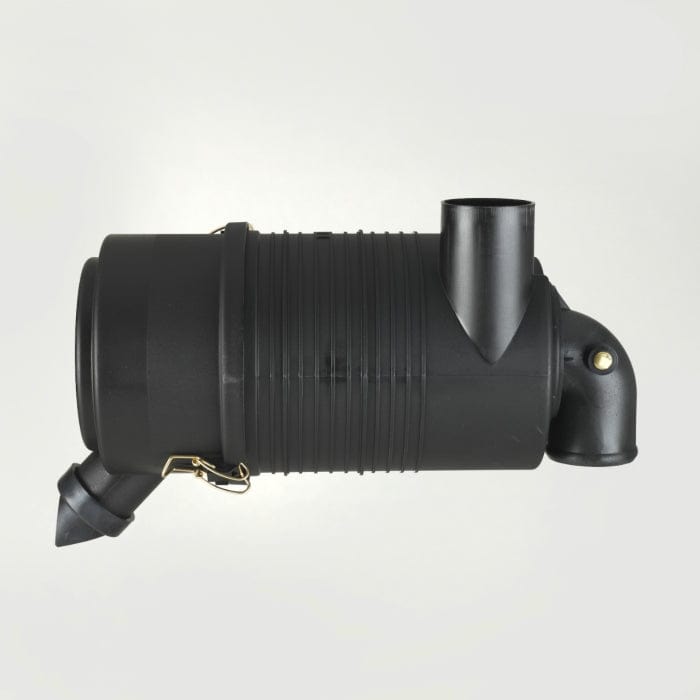

Air Cleaner, Fpg Radialseal - Donaldson G065433
Air Cleaner, Fpg Radialseal - Donaldson G065433
Regular price
£67.21
Regular price
Sale price
£67.21
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson G065433
Air Cleaner, Fpg Radialseal| Inlet Diameter | 2.50 inch (63.5 mm) |
| Outlet Diameter | 2.50 inch (63.5 mm) |
| Body Diameter Maximum | 6.74 inch (171.2 mm) |
| Body Length | 8.58 inch (217.9 mm) |
| Overall Length | 15.06 inch (382.4 mm) |
| Rated Flow LR | 120 cfm (3.4 m³/min) |
| Rated Flow MR | 134 cfm (3.8 m³/min) |
| Rated Flow HR | 155 cfm (4.4 m³/min) |
| Restriction LR | 5.98 inch H2O (152 mm H2O) |
| Restriction MR | 7.99 inch H2O (203 mm H2O) |
| Restriction HR | 10.00 inch H2O (254 mm H2O) |
| Style | Radialseal |
| Family | FPG |
| Brand | RadialSeal™ |
| Primary Application | 90 DEGREE OUTLET, NO SAFETY |
Share
Collapsible content
Specifications
Attributes
- Inlet Diameter: 63.5 mm (2.50 inch)
- Outlet Diameter: 63.5 mm (2.50 inch)
- Body Diameter Maximum: 171.2 mm (6.74 inch)
- Body Length: 217.9 mm (8.58 inch)
- Overall Length: 382.4 mm (15.06 inch)
- Rated Flow LR: 3.4 m³/min (120 cfm)
- Rated Flow MR: 3.8 m³/min (134 cfm)
- Rated Flow HR: 4.4 m³/min (155 cfm)
- Restriction LR: 152 mm H2O (5.98 inch H2O)
- Restriction MR: 203 mm H2O (7.99 inch H2O)
- Restriction HR: 254 mm H2O (10.00 inch H2O)
- Style: Radialseal
- Family: FPG
- Brand: RadialSeal™
- Primary Application: 90 DEGREE OUTLET
- NO SAFETY:
Packaged Dimensions
- Packaged Length: 0.258 m (10.30 inch)
- Packaged Width: 0.195 m (7.80 inch)
- Packaged Height: 0.433 m (17.30 inch)
- Packaged Weight: 1.807 kg (3.98 lb)
- Packaged Volume: 0.023 m3 (0.80 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-02
- HTS Code: 8421310090
- UPC Code: 742330001455
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| ALLMAND BROS | MA372AC | |
| ALLMAND BROS | MA372ZC | |
| BLOUNT | 811887500 | |
| BOBCAT | 6673892 | |
| BOSS INDUSTRIES | 15090452 | |
| CASE/CASE IH | N102858 | |
| CATERPILLAR | 811887500 | |
| DIAMANT BOART INC | 523291901 | |
| JOHN DEERE | 811887500 | |
| JOHN DEERE | 811887500J | |
| JOHN DEERE | 81887500 | |
| LINCOLN ELECTRIC | M22157 | |
| ONAN | 1403051 | |
| ONAN | 01403051 | |
| PETTIBONE | LL847444 | |
| PETTIBONE | TJ811887500 | |
| SMITH AIR COMPRESSORS | 15090452 | |
| SULLIVAN PALATEK | P50181740038 | |
| SUPERIOR COMPRESSOR | 15090452 | |
| TELEDYNE | A033919 | |
| TIMBERJACK | 8118875 | |
| TIMBERJACK | 811887500 | |
| TORO | 935111SUB | |
| TORO | 935111 | |
| TORO | 1108917 |
