• Donaldson Air Cleaner, Fpg Radialseal - Donaldson G065432
1 1

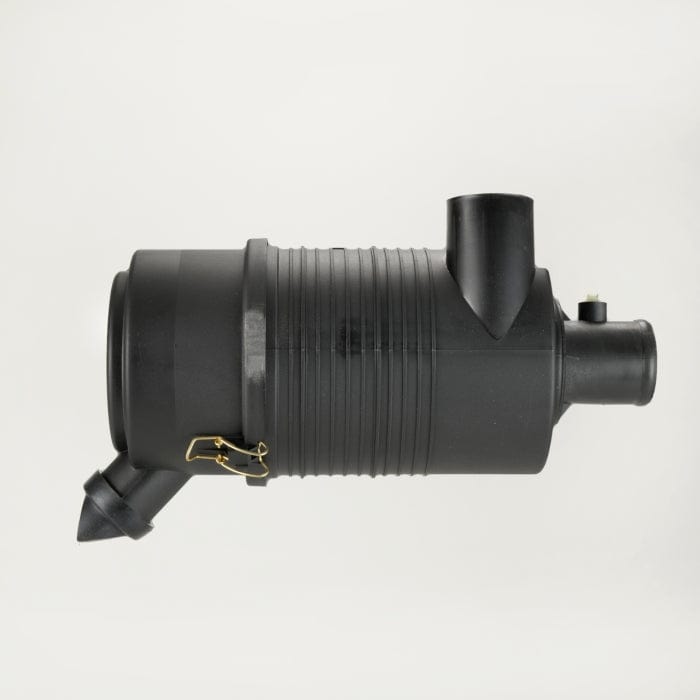

Air Cleaner, Fpg Radialseal - Donaldson G065432

Air Cleaner, Fpg Radialseal - Donaldson G065432

£74.43
£74.43
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson G065432

Air Cleaner, Fpg Radialseal
Inlet Diameter 2.50 inch (63.5 mm)
Outlet Diameter 2.50 inch (63.5 mm)
Body Diameter Maximum 6.74 inch (171.2 mm)
Body Length 8.58 inch (217.9 mm)
Overall Length 16.68 inch (423.8 mm)
Rated Flow LR 120 cfm (3.4 m³/min)
Rated Flow MR 134 cfm (3.8 m³/min)
Rated Flow HR 155 cfm (4.4 m³/min)
Restriction LR 5.98 inch H2O (152 mm H2O)
Restriction MR 7.99 inch H2O (203 mm H2O)
Restriction HR 10.00 inch H2O (254 mm H2O)
Style Radialseal
Family FPG
Brand RadialSeal™
View full details

Specifications

Attributes

  • Inlet Diameter: 63.5 mm (2.50 inch)
  • Outlet Diameter: 63.5 mm (2.50 inch)
  • Body Diameter Maximum: 171.2 mm (6.74 inch)
  • Body Length: 217.9 mm (8.58 inch)
  • Overall Length: 423.8 mm (16.68 inch)
  • Rated Flow LR: 3.4 m³/min (120 cfm)
  • Rated Flow MR: 3.8 m³/min (134 cfm)
  • Rated Flow HR: 4.4 m³/min (155 cfm)
  • Restriction LR: 152 mm H2O (5.98 inch H2O)
  • Restriction MR: 203 mm H2O (7.99 inch H2O)
  • Restriction HR: 254 mm H2O (10.00 inch H2O)
  • Style: Radialseal
  • Family: FPG
  • Brand: RadialSeal™

Packaged Dimensions

  • Packaged Length: 0.258 m (10.30 inch)
  • Packaged Width: 0.195 m (7.80 inch)
  • Packaged Height: 0.438 m (17.50 inch)
  • Packaged Weight: 1.746 kg (3.85 lb)
  • Packaged Volume: 0.023 m3 (0.81 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-04
  • HTS Code: 8421310090
  • UPC Code: 742330001448

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BOSS INDUSTRIES 301081
DENYO Y0602046581
FREIGHTLINER DNG065432
GRIMMER SCHMIDT 12465178
HURRICANE COMPRESSOR 12465178
LINCOLN ELECTRIC M20281
MILLER ELECTRIC 189764
P & H 1046Z1017
YANMAR 12968712500
