• Donaldson Air Cleaner, Fpg Radialseal - Donaldson G057514
1 1

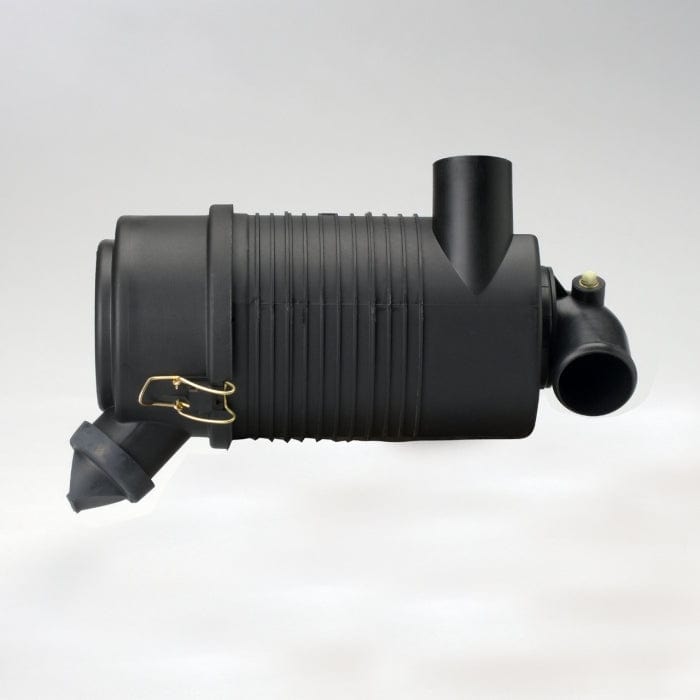

Air Cleaner, Fpg Radialseal - Donaldson G057514

Air Cleaner, Fpg Radialseal - Donaldson G057514

£53.76
£53.76
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson G057514

Air Cleaner, Fpg Radialseal
Inlet Diameter 2.00 inch (50.8 mm)
Outlet Diameter 2.00 inch (50.8 mm)
Body Diameter Maximum 5.75 inch (146 mm)
Body Length 8.09 inch (205.4 mm)
Overall Length 12.99 inch (330 mm)
Rated Flow LR 81 cfm (2.3 m³/min)
Rated Flow MR 95 cfm (2.7 m³/min)
Rated Flow HR 106 cfm (3 m³/min)
Restriction LR 5.98 inch H2O (152 mm H2O)
Restriction MR 7.99 inch H2O (203 mm H2O)
Restriction HR 10.00 inch H2O (254 mm H2O)
Style Radialseal
Family FPG
Brand RadialSeal™
View full details

Specifications

Attributes

  • Inlet Diameter: 50.8 mm (2.00 inch)
  • Outlet Diameter: 50.8 mm (2.00 inch)
  • Body Diameter Maximum: 146 mm (5.75 inch)
  • Body Length: 205.4 mm (8.09 inch)
  • Overall Length: 330 mm (12.99 inch)
  • Rated Flow LR: 2.3 m³/min (81 cfm)
  • Rated Flow MR: 2.7 m³/min (95 cfm)
  • Rated Flow HR: 3 m³/min (106 cfm)
  • Restriction LR: 152 mm H2O (5.98 inch H2O)
  • Restriction MR: 203 mm H2O (7.99 inch H2O)
  • Restriction HR: 254 mm H2O (10.00 inch H2O)
  • Style: Radialseal
  • Family: FPG
  • Brand: RadialSeal™

Packaged Dimensions

  • Packaged Length: 0.218 m (8.70 inch)
  • Packaged Width: 0.168 m (6.70 inch)
  • Packaged Height: 0.388 m (15.50 inch)
  • Packaged Weight: 1.183 kg (2.61 lb)
  • Packaged Volume: 0.015 m3 (0.52 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-03
  • HTS Code: 8421310090
  • UPC Code: 742330001264

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ALLMAND BROS 921142
ARIENS T839309C
CARRIER TRANSICOLD 300042603
CARRIER TRANSICOLD 300042603Z
CARRIER TRANSICOLD 300042601
CASE/CASE IH NX14210057
DIAMANT BOART INC 523291601
EAGLE PICHER 64562
EXCEL 782763
GEHL 175783
GENERAC OE0135
JACOBSEN 2198147
JACOBSEN 3001965
LINCOLN ELECTRIC M20358
LOESING 020810
LOESING 20810
MILLER ELECTRIC 220000
RAINBOW MANUFACTURING 15215
RANSOMES 2198147
SMITH AIR COMPRESSORS 15090403
SUPERIOR COMPRESSOR 15090403
SUPERPAK COMPACTION 202707
TORO 1065277
TORO 1004824
VERMEER 287130001
VOLVO 6050137
VOLVO 202707
VOLVO CONSTRUCTION EQUIPMENT 11802327
YANMAR 52968912500
