Air Cleaner, Fpg Radialseal - Donaldson G057512

Air Cleaner, Fpg Radialseal - Donaldson G057512

£66.92
£66.92
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

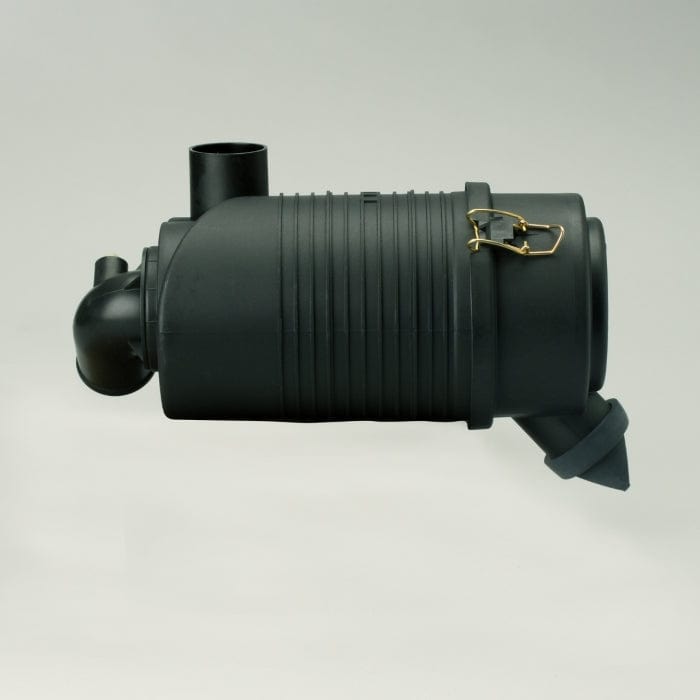

Donaldson G057512

Air Cleaner, Fpg Radialseal
Inlet Diameter 2.00 inch (50.8 mm)
Outlet Diameter 2.00 inch (50.8 mm)
Body Diameter Maximum 5.75 inch (146 mm)
Body Length 8.44 inch (214.4 mm)
Overall Length 12.98 inch (329.7 mm)
Rated Flow LR 64 cfm (1.8 m³/min)
Rated Flow MR 81 cfm (2.3 m³/min)
Rated Flow HR 92 cfm (2.6 m³/min)
Restriction LR 5.98 inch H2O (152 mm H2O)
Restriction MR 7.99 inch H2O (203 mm H2O)
Restriction HR 10.00 inch H2O (254 mm H2O)
Style Radialseal
Family FPG
Brand RadialSeal™
View full details

Specifications

Attributes

  • Inlet Diameter: 50.8 mm (2.00 inch)
  • Outlet Diameter: 50.8 mm (2.00 inch)
  • Body Diameter Maximum: 146 mm (5.75 inch)
  • Body Length: 214.4 mm (8.44 inch)
  • Overall Length: 329.7 mm (12.98 inch)
  • Rated Flow LR: 1.8 m³/min (64 cfm)
  • Rated Flow MR: 2.3 m³/min (81 cfm)
  • Rated Flow HR: 2.6 m³/min (92 cfm)
  • Restriction LR: 152 mm H2O (5.98 inch H2O)
  • Restriction MR: 203 mm H2O (7.99 inch H2O)
  • Restriction HR: 254 mm H2O (10.00 inch H2O)
  • Style: Radialseal
  • Family: FPG
  • Brand: RadialSeal™

Packaged Dimensions

  • Packaged Length: 0.220 m (8.80 inch)
  • Packaged Width: 0.168 m (6.70 inch)
  • Packaged Height: 0.388 m (15.50 inch)
  • Packaged Weight: 1.298 kg (2.86 lb)
  • Packaged Volume: 0.015 m3 (0.53 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 156600-04
  • HTS Code: 8421310090
  • UPC Code: 742330001240

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ADVANCE MACHINE 56482478
ADVANCE MACHINE 482478
ALLMAND BROS MA374AC
ARGO 4215896M91
ARIENS 03782600
ASV INCORPORATED 0304034
AUSTOFT 42036074
BRIGGS & STRATTON 23378
BRIGGS & STRATTON 809218B
BRIGGS & STRATTON 809218
CAPACITY OF TEXAS 467472
CARRIER TRANSICOLD 300042600
CUMMINS 10000633
DIAMANT BOART INC 181320
DITCH WITCH 194093A
DITCH WITCH 194093
FEDERAL-MOGUL 181320
GEHL 176718
GENERAC OE3655
GROVE 7304000640
HYDRA MAC 4101403
JOHN DEERE TCA12208
KAWASAKI 110107028
KAWASAKI 11010X79701
NILFISK-ADVANCE INCORPORATED 56482478
PERKINS 33500215
ROBIN MFG USA INC EH650J0785
SELLICK EQPT LTD 180427
SKYJACK 711270
SUPERPAK COMPACTION 209493
THOMAS 053588
VERMEER 264391001
VERMEER 285372001
VOLVO 209493
WALDON 467472
