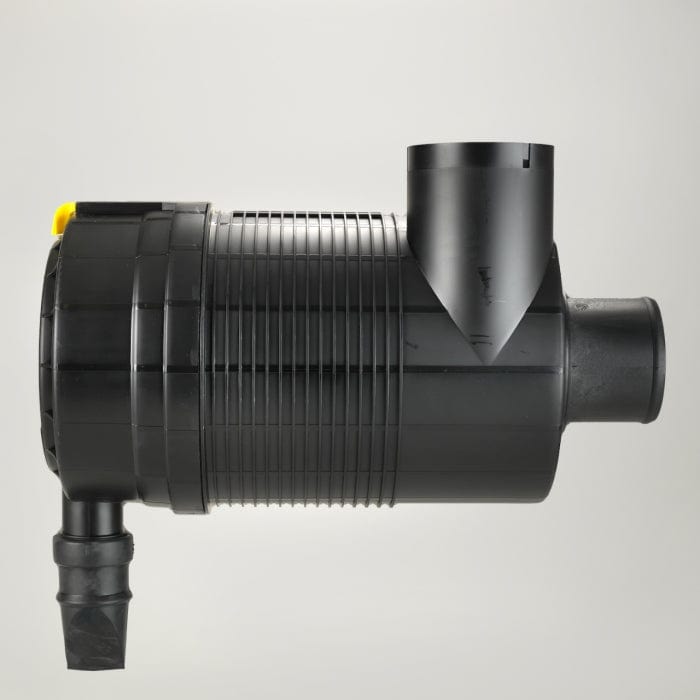

Air Cleaner, Fpg Radialseal Alexin - Donaldson G090225

Air Cleaner, Fpg Radialseal Alexin - Donaldson G090225

£176.03
£176.03
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson G090225

Air Cleaner, Fpg Radialseal Alexin
Inlet Diameter 4.49 inch (114 mm)
Outlet Diameter 4.00 inch (101.5 mm)
Body Diameter Maximum 9.53 inch (242 mm)
Body Length 12.70 inch (322.6 mm)
Overall Length 19.17 inch (487 mm)
Rated Flow LR 265 cfm (7.5 m³/min)
Rated Flow MR 300 cfm (8.5 m³/min)
Rated Flow HR 335 cfm (9.5 m³/min)
Restriction LR 5.98 inch H2O (152 mm H2O)
Restriction MR 7.99 inch H2O (203 mm H2O)
Restriction HR 10.00 inch H2O (254 mm H2O)
Style Radialseal
Family FPG
Brand SCA+™
View full details

Specifications

Attributes

  • Inlet Diameter: 114 mm (4.49 inch)
  • Outlet Diameter: 101.5 mm (4.00 inch)
  • Body Diameter Maximum: 242 mm (9.53 inch)
  • Body Length: 322.6 mm (12.70 inch)
  • Overall Length: 487 mm (19.17 inch)
  • Rated Flow LR: 7.5 m³/min (265 cfm)
  • Rated Flow MR: 8.5 m³/min (300 cfm)
  • Rated Flow HR: 9.5 m³/min (335 cfm)
  • Restriction LR: 152 mm H2O (5.98 inch H2O)
  • Restriction MR: 203 mm H2O (7.99 inch H2O)
  • Restriction HR: 254 mm H2O (10.00 inch H2O)
  • Style: Radialseal
  • Family: FPG
  • Brand: SCA+™

Packaged Dimensions

  • Packaged Length: 0.374 m (14.96 inch)
  • Packaged Width: 0.374 m (14.96 inch)
  • Packaged Height: 0.620 m (24.80 inch)
  • Packaged Weight: 3.797 kg (8.37 lb)
  • Packaged Volume: 0.090 m3 (3.21 ft3)

Other Information

  • Country of Origin: Poland
  • HTS Code: 8421310090
  • UPC Code: 742330141977

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ATLAS COPCO 1310035388
CASE/CASE IH 920019203
CASE/CASE IH N100335
CASE/CASE IH 87443668
CATERPILLAR 2990351
CATERPILLAR 2001438
CATERPILLAR 2994053
CUMMINS CDD000929
FG WILSON 2994053
GRADALL 91343057
JLG 8273029
JLG 80273029
KOMATSU 5075922
KRAMER 1000146051
LIEBHERR 10335776
NEW HOLLAND 920019203
PERKINS 2652C838
PERKINS 2652C841
PERKINS 2652C146
SAKAI 4420960000
SANDVIK 77008498
SANDVIK BG00561824
SHANZHONG J21307A510000
TENNANT 314132
YTO 240100120746
