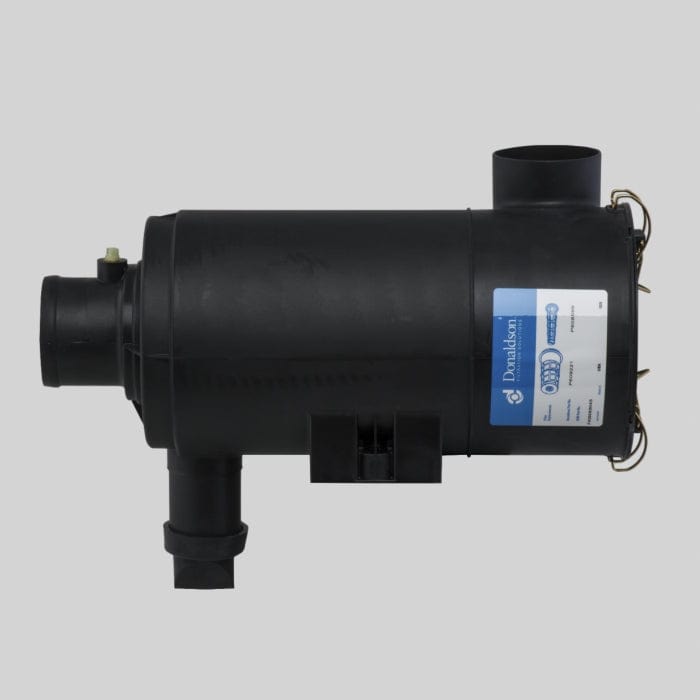

Air Cleaner, Fkb Cycloflow - Donaldson B065045

Air Cleaner, Fkb Cycloflow - Donaldson B065045

£115.92
£115.92
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson B065045

Air Cleaner, Fkb Cycloflow
Inlet Diameter 3.00 inch (76.2 mm)
Outlet Diameter 3.00 inch (76.2 mm)
Body Diameter Maximum 7.09 inch (180 mm)
Body Length 13.01 inch (330.4 mm)
Overall Length 16.06 inch (407.9 mm)
Rated Flow LR 155 cfm (4.4 m³/min)
Rated Flow MR 184 cfm (5.2 m³/min)
Rated Flow HR 208 cfm (5.9 m³/min)
Restriction LR 5.98 inch H2O (152 mm H2O)
Restriction MR 7.99 inch H2O (203 mm H2O)
Restriction HR 10.00 inch H2O (254 mm H2O)
Family FKB
Brand Cycloflow™
View full details

Specifications

Attributes

  • Inlet Diameter: 76.2 mm (3.00 inch)
  • Outlet Diameter: 76.2 mm (3.00 inch)
  • Body Diameter Maximum: 180 mm (7.09 inch)
  • Body Length: 330.4 mm (13.01 inch)
  • Overall Length: 407.9 mm (16.06 inch)
  • Rated Flow LR: 4.4 m³/min (155 cfm)
  • Rated Flow MR: 5.2 m³/min (184 cfm)
  • Rated Flow HR: 5.9 m³/min (208 cfm)
  • Restriction LR: 152 mm H2O (5.98 inch H2O)
  • Restriction MR: 203 mm H2O (7.99 inch H2O)
  • Restriction HR: 254 mm H2O (10.00 inch H2O)
  • Family: FKB
  • Brand: Cycloflow™

Packaged Dimensions

  • Packaged Length: 0.293 m (11.70 inch)
  • Packaged Width: 0.248 m (9.90 inch)
  • Packaged Height: 0.503 m (20.10 inch)
  • Packaged Weight: 2.286 kg (5.04 lb)
  • Packaged Volume: 0.038 m3 (1.35 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 156600-06
  • HTS Code: 8421310090
  • UPC Code: 742330161661

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CATERPILLAR 3093972
JLG 1001080390
KOBELCO KPCE023
TAFE 1945P00301
