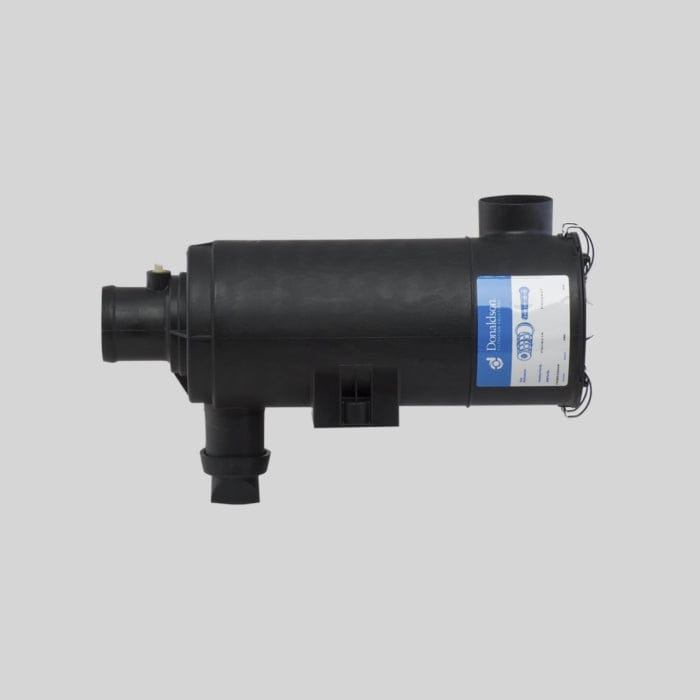

Air Cleaner, Fkb Cycloflow - Donaldson B055006

Air Cleaner, Fkb Cycloflow - Donaldson B055006

£102.56
£102.56
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson B055006

Air Cleaner, Fkb Cycloflow
Inlet Diameter 2.50 inch (63.5 mm)
Outlet Diameter 2.50 inch (63.4 mm)
Body Diameter Maximum 5.95 inch (151.1 mm)
Body Length 12.83 inch (326 mm)
Overall Length 15.81 inch (401.5 mm)
Rated Flow LR 117 cfm (3.3 m³/min)
Rated Flow MR 138 cfm (3.9 m³/min)
Rated Flow HR 155 cfm (4.4 m³/min)
Restriction LR 5.98 inch H2O (152 mm H2O)
Restriction MR 7.99 inch H2O (203 mm H2O)
Restriction HR 10.00 inch H2O (254 mm H2O)
Family FKB
Brand Cycloflow™
View full details

Specifications

Attributes

  • Inlet Diameter: 63.5 mm (2.50 inch)
  • Outlet Diameter: 63.4 mm (2.50 inch)
  • Body Diameter Maximum: 151.1 mm (5.95 inch)
  • Body Length: 326 mm (12.83 inch)
  • Overall Length: 401.5 mm (15.81 inch)
  • Rated Flow LR: 3.3 m³/min (117 cfm)
  • Rated Flow MR: 3.9 m³/min (138 cfm)
  • Rated Flow HR: 4.4 m³/min (155 cfm)
  • Restriction LR: 152 mm H2O (5.98 inch H2O)
  • Restriction MR: 203 mm H2O (7.99 inch H2O)
  • Restriction HR: 254 mm H2O (10.00 inch H2O)
  • Family: FKB
  • Brand: Cycloflow™

Packaged Dimensions

  • Packaged Length: 0.258 m (10.30 inch)
  • Packaged Width: 0.200 m (8.00 inch)
  • Packaged Height: 0.438 m (17.50 inch)
  • Packaged Weight: 1.519 kg (3.35 lb)
  • Packaged Volume: 0.023 m3 (0.83 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 156600-03
  • HTS Code: 8421310090
  • UPC Code: 742330164877

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ASV INCORPORATED 2052291
