• Donaldson Air Cleaner, Fkb Cycloflow - Donaldson B045008
1 1

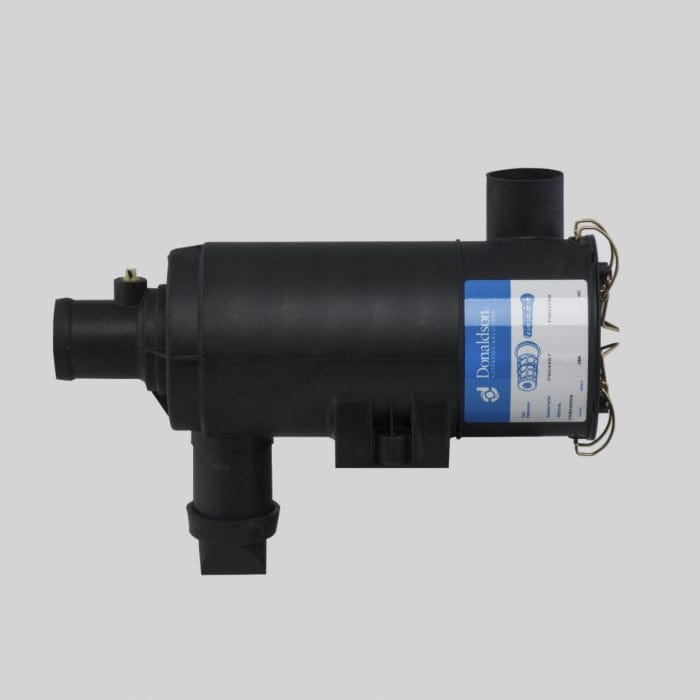

Air Cleaner, Fkb Cycloflow - Donaldson B045008

Air Cleaner, Fkb Cycloflow - Donaldson B045008

£89.11
£89.11
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson B045008

Air Cleaner, Fkb Cycloflow
Inlet Diameter 2.00 inch (50.8 mm)
Outlet Diameter 2.00 inch (50.8 mm)
Body Diameter Maximum 5.23 inch (132.9 mm)
Body Length 10.46 inch (265.6 mm)
Overall Length 13.48 inch (342.4 mm)
Rated Flow LR 71 cfm (2 m³/min)
Rated Flow MR 85 cfm (2.4 m³/min)
Rated Flow HR 95 cfm (2.7 m³/min)
Restriction LR 5.98 inch H2O (152 mm H2O)
Restriction MR 7.99 inch H2O (203 mm H2O)
Restriction HR 10.00 inch H2O (254 mm H2O)
Family FKB
Brand Cycloflow™
View full details

Specifications

Attributes

  • Inlet Diameter: 50.8 mm (2.00 inch)
  • Outlet Diameter: 50.8 mm (2.00 inch)
  • Body Diameter Maximum: 132.9 mm (5.23 inch)
  • Body Length: 265.6 mm (10.46 inch)
  • Overall Length: 342.4 mm (13.48 inch)
  • Rated Flow LR: 2 m³/min (71 cfm)
  • Rated Flow MR: 2.4 m³/min (85 cfm)
  • Rated Flow HR: 2.7 m³/min (95 cfm)
  • Restriction LR: 152 mm H2O (5.98 inch H2O)
  • Restriction MR: 203 mm H2O (7.99 inch H2O)
  • Restriction HR: 254 mm H2O (10.00 inch H2O)
  • Family: FKB
  • Brand: Cycloflow™

Packaged Dimensions

  • Packaged Length: 0.258 m (10.30 inch)
  • Packaged Width: 0.198 m (7.90 inch)
  • Packaged Height: 0.435 m (17.40 inch)
  • Packaged Weight: 1.260 kg (2.78 lb)
  • Packaged Volume: 0.023 m3 (0.82 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 156600-03
  • HTS Code: 8421310090
  • UPC Code: 742330162323
