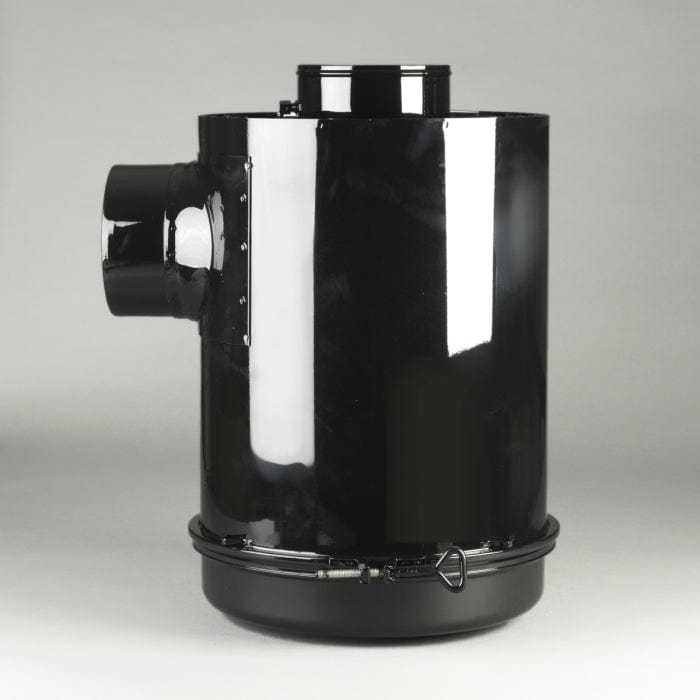

Air Cleaner, Fhg Cyclopac - Donaldson G160048

Attributes

• Inlet Diameter: 177.8 mm (7.00 inch)
• Outlet Diameter: 177.8 mm (7.00 inch)
• Body Diameter Maximum: 406.4 mm (16.00 inch)
• Body Length: 498.86 mm (19.64 inch)
• Overall Length: 702.31 mm (27.65 inch)
• Rated Flow LR: 17.5 m³/min (618 cfm)
• Rated Flow MR: 20.9 m³/min (738 cfm)
• Rated Flow HR: 23.7 m³/min (837 cfm)
• Restriction LR: 152 mm H2O (5.98 inch H2O)
• Restriction MR: 203 mm H2O (7.99 inch H2O)
• Restriction HR: 254 mm H2O (10.00 inch H2O)
• Family: FHG
• Brand: Cyclopac™

Packaged Dimensions

• Packaged Length: 0.744 m (29.75 inch)
• Packaged Width: 0.525 m (21.00 inch)
• Packaged Height: 0.581 m (23.25 inch)
• Packaged Weight: 24.221 kg (53.35 lb)
• Packaged Volume: 0.235 m3 (8.41 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 069100-05
• HTS Code: 8421310090
• UPC Code: 742330002223
