• Donaldson Air Cleaner, Epg Radialseal - Donaldson G150048
1 1

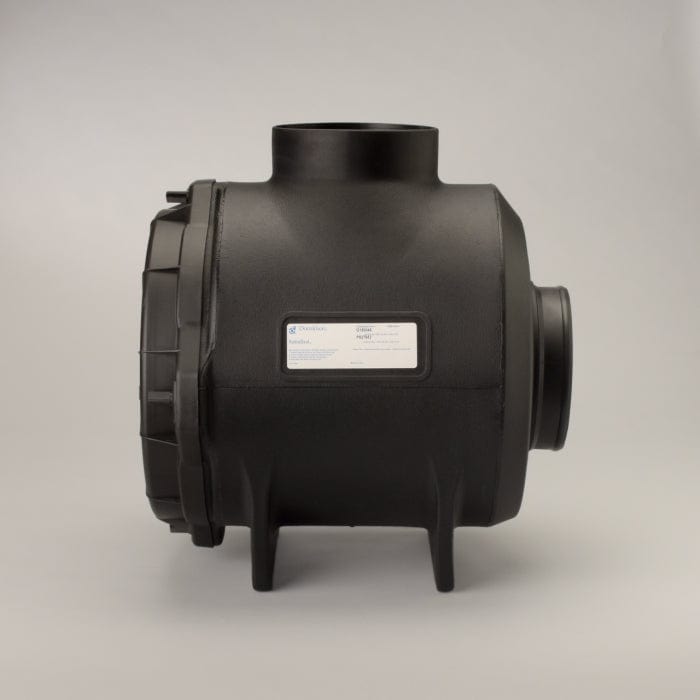

Air Cleaner, Epg Radialseal - Donaldson G150048

Air Cleaner, Epg Radialseal - Donaldson G150048

£263.14
£263.14
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson G150048

Air Cleaner, Epg Radialseal
Inlet Diameter 7.00 inch (177.8 mm)
Outlet Diameter 7.00 inch (177.8 mm)
Body Diameter Maximum 14.62 inch (371.35 mm)
Body Length 13.89 inch (352.81 mm)
Overall Length 17.52 inch (445.01 mm)
Rated Flow MR 1324 cfm (37.5 m³/min)
Restriction MR 8.00 inch H2O (203.2 mm H2O)
Style Radialseal
Family EPG
Brand RadialSeal™
View full details

Specifications

Attributes

  • Inlet Diameter: 177.8 mm (7.00 inch)
  • Outlet Diameter: 177.8 mm (7.00 inch)
  • Body Diameter Maximum: 371.35 mm (14.62 inch)
  • Body Length: 352.81 mm (13.89 inch)
  • Overall Length: 445.01 mm (17.52 inch)
  • Rated Flow MR: 37.5 m³/min (1324 cfm)
  • Restriction MR: 203.2 mm H2O (8.00 inch H2O)
  • Style: Radialseal
  • Family: EPG
  • Brand: RadialSeal™

Packaged Dimensions

  • Packaged Length: 0.488 m (19.50 inch)
  • Packaged Width: 0.416 m (16.63 inch)
  • Packaged Height: 0.475 m (19.00 inch)
  • Packaged Weight: 11.350 kg (25.00 lb)
  • Packaged Volume: 0.100 m3 (3.56 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-04
  • HTS Code: 8421310090
  • UPC Code: 742330002193

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CRANE CARRIER 102B0073
FORD 9576G150048
GARDNER DENVER 5L355
GILLIG 5325807000
HOBART EB5962
INGERSOLL RAND 39854948
IRKARUS 5000526
ISUZU X14210078
LINK BELT D6A1618
MACK 2191G150048
NATIONAL OILWELL 93004203
NEW FLYER INDUSTRIES LTD 127553
NEW FLYER INDUSTRIES LTD 065503
OSHKOSH 2250240
OTTAWA TRUCK 90024842
TRACKMOBILE 1083465
UPTIME PARTS A2200001001
