• Donaldson Air Cleaner, Ecg 2500 - Donaldson G112501
1 1

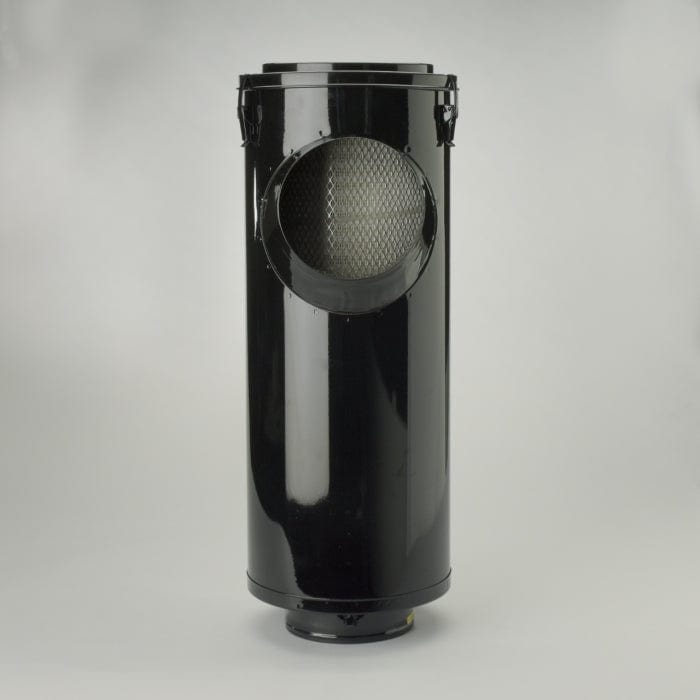

Air Cleaner, Ecg 2500 - Donaldson G112501

Air Cleaner, Ecg 2500 - Donaldson G112501

£408.32
£408.32
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson G112501

Air Cleaner, Ecg 2500
Inlet Diameter 7.00 inch (177.8 mm)
Outlet Diameter 7.00 inch (177.8 mm)
Body Diameter Maximum 11.00 inch (279.4 mm)
Body Length 27.25 inch (692.15 mm)
Overall Length 30.30 inch (769.6 mm)
Rated Flow LR 1201 cfm (34 m³/min)
Rated Flow MR 1398 cfm (39.6 m³/min)
Rated Flow HR 1600 cfm (45.3 m³/min)
Restriction LR 5.98 inch H2O (152 mm H2O)
Restriction MR 7.99 inch H2O (203 mm H2O)
Restriction HR 10.00 inch H2O (254 mm H2O)
Family ECG
View full details

Specifications

Attributes

  • Inlet Diameter: 177.8 mm (7.00 inch)
  • Outlet Diameter: 177.8 mm (7.00 inch)
  • Body Diameter Maximum: 279.4 mm (11.00 inch)
  • Body Length: 692.15 mm (27.25 inch)
  • Overall Length: 769.6 mm (30.30 inch)
  • Rated Flow LR: 34 m³/min (1201 cfm)
  • Rated Flow MR: 39.6 m³/min (1398 cfm)
  • Rated Flow HR: 45.3 m³/min (1600 cfm)
  • Restriction LR: 152 mm H2O (5.98 inch H2O)
  • Restriction MR: 203 mm H2O (7.99 inch H2O)
  • Restriction HR: 254 mm H2O (10.00 inch H2O)
  • Family: ECG

Packaged Dimensions

  • Packaged Length: 0.875 m (35.00 inch)
  • Packaged Width: 0.350 m (14.00 inch)
  • Packaged Height: 0.500 m (20.00 inch)
  • Packaged Weight: 22.700 kg (50.00 lb)
  • Packaged Volume: 0.159 m3 (5.67 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-04
  • HTS Code: 8421310090
  • UPC Code: 742330001905

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ASTEC UNDERGROUND AU118124
DART ECG112501
KENWORTH ECG112501
ONAN 01402463
ONAN 1402463
