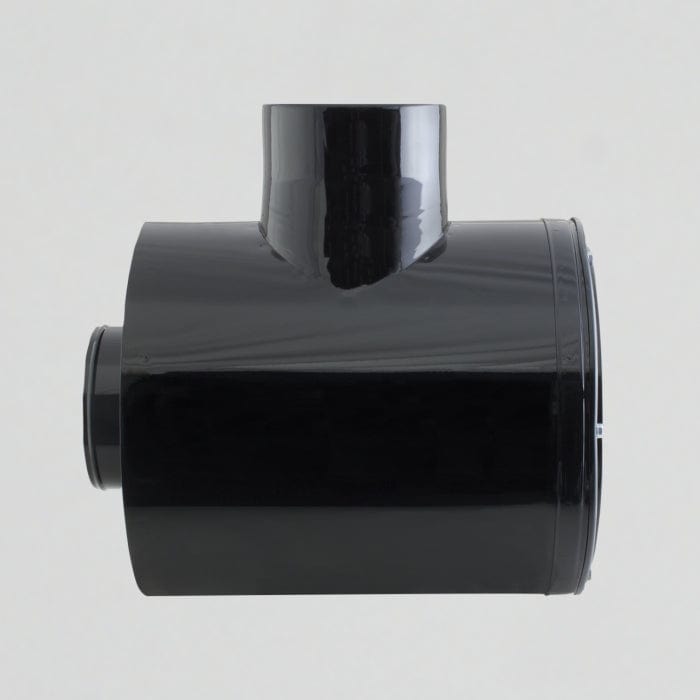

Air Cleaner, Ebb - Donaldson B160049
Air Cleaner, Ebb - Donaldson B160049
Regular price
£507.13
Regular price
Sale price
£507.13
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson B160049
Air Cleaner, Ebb| Inlet Diameter | 8.00 inch (203.2 mm) |
| Outlet Diameter | 7.00 inch (177.8 mm) |
| Body Diameter Maximum | 16.00 inch (406.4 mm) |
| Body Length | 18.25 inch (463.55 mm) |
| Overall Length | 21.25 inch (539.7 mm) |
| Inlet Length | 12.91 inch (328 mm) |
| Outlet Length | 2.52 inch (64 mm) |
| Rated Flow LR | 1360 cfm (38.5 m³/min) |
| Rated Flow MR | 1529 cfm (43.3 m³/min) |
| Rated Flow HR | 1639 cfm (46.4 m³/min) |
| Restriction LR | 5.98 inch H2O (152 mm H2O) |
| Restriction MR | 7.99 inch H2O (203 mm H2O) |
| Restriction HR | 10.00 inch H2O (254 mm H2O) |
| Family | EBB |
| Inlet Location | 8.84 inch (224.5 mm) |
