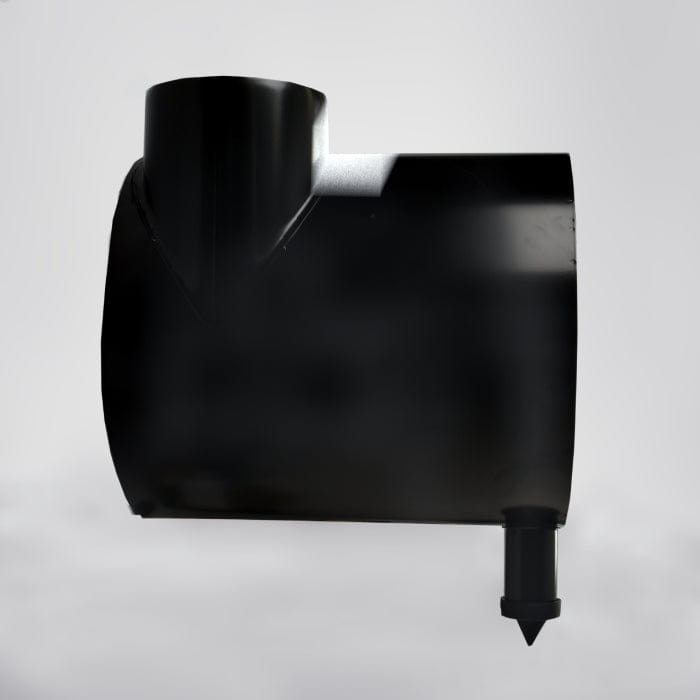

Air Cleaner Assembly - Donaldson G210007

Air Cleaner Assembly - Donaldson G210007

£1,253.10
£1,253.10
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson G210007

Air Cleaner Assembly
Inlet Diameter 10.00 inch (254 mm)
Outlet Diameter 10.00 inch (254 mm)
Body Diameter Maximum 21.50 inch (546 mm)
Body Length 24.13 inch (613 mm)
Overall Length 27.68 inch (703 mm)
Rated Flow LR 1448 cfm (41 m³/min)
Rated Flow MR 1695 cfm (48 m³/min)
Rated Flow HR 1914 cfm (54.2 m³/min)
Restriction LR 5.98 inch H2O (152 mm H2O)
Restriction MR 7.99 inch H2O (203 mm H2O)
Restriction HR 10.00 inch H2O (254 mm H2O)
Family FTG
View full details

Specifications

Attributes

  • Inlet Diameter: 254 mm (10.00 inch)
  • Outlet Diameter: 254 mm (10.00 inch)
  • Body Diameter Maximum: 546 mm (21.50 inch)
  • Body Length: 613 mm (24.13 inch)
  • Overall Length: 703 mm (27.68 inch)
  • Rated Flow LR: 41 m³/min (1448 cfm)
  • Rated Flow MR: 48 m³/min (1695 cfm)
  • Rated Flow HR: 54.2 m³/min (1914 cfm)
  • Restriction LR: 152 mm H2O (5.98 inch H2O)
  • Restriction MR: 203 mm H2O (7.99 inch H2O)
  • Restriction HR: 254 mm H2O (10.00 inch H2O)
  • Family: FTG

Packaged Dimensions

  • Packaged Length: 0.806 m (32.25 inch)
  • Packaged Width: 0.610 m (24.40 inch)
  • Packaged Height: 0.738 m (29.50 inch)
  • Packaged Weight: 39.916 kg (88.02 lb)
  • Packaged Volume: 0.376 m3 (13.43 ft3)

Other Information

  • Country of Origin: Germany
  • NMFC Code: 069100-05
  • HTS Code: 8421310090
  • UPC Code: 742330129890

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ATLAS COPCO 1610634000
CATERPILLAR 2416668
DEUTZ 04226289
DEUTZ 4226289
LIEBHERR 550948614
LOESING 020604
LOESING 20604
ONAN A029G993
OSHKOSH 3734156
SDMO 30801033501
